BH701 – 7in Steel Bullet Hinge

$18.30

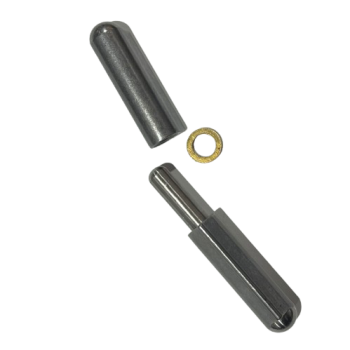

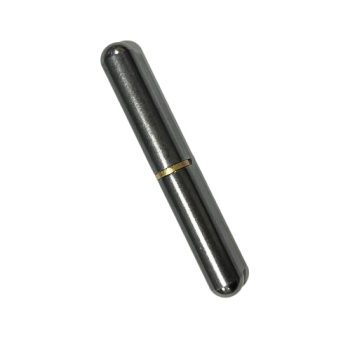

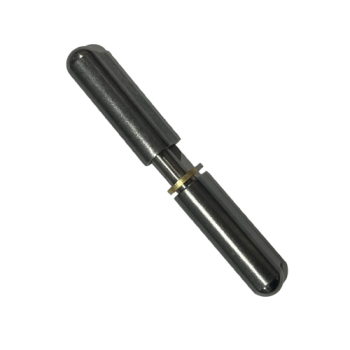

Item #BH701 7in Steel Bullet Hinge

This approx 7 inch Bullet Hinge measures 7.18″. Sometimes called Raindrop/Teardrop or Piston Hinge.

Manufactured of solid steel, this is a weld on hinge type. This is the Perfect Hinge for medium to heavy swing gates. Supports gates up to 520 lbs.

Approx Specification: Length 4.75″; Barrel Dia. 0.62″, Barrel Width 0.8″; Pin Dia. 0.4″, Pin Length 1.3″ with copper spacer.



Shop these Steel Hinges and Similar Aluminum Hinges here at USMetalDesigns.com

250 in stock



Description

Item #BH701 7in Steel Bullet Hinge

This approx 7 inch Bullet Hinge measures 7.18″. Sometimes called Raindrop/Teardrop or Piston Hinge.

Manufactured of solid steel, this is a weld on hinge type. This is the Perfect Hinge for medium to heavy swing gates. Supports gates up to 520 lbs.

Approx Specification: Length 7.18″; Barrel Dia. 0.81″, Barrel Width 1″; Pin Dia. 0.51″, Pin Length 1.9″ with copper spacer.

Approx Wt. per Pair- 2 lbs, shipping weight higher.



This item is Sold by the Pair

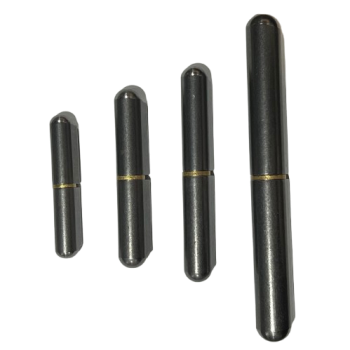

Search similar Steel Hinges here with code “BH301″ for 3” Long Hinge; “BH401” for 3.88 Length, “BH501″ for 4.75” and so on.. Shop US Metal Designs Today





Additional information

Weight 3 lbs
Dimensions 8 × 8 × 8 in
