OGGWB-38A Two Wheel Guide Bracket
$41.40
Item#OGGWB-38A Two Wheel Guide Bracket
Nylon Wheeled Guide Bracket for Medium or Larger Sized Overhead ; Cantilever or Sliding Gate System.
- Two Nylon Guide Wheels
- Strong and safe Gate Wheel Guide
- Works with Carriage Model# CGH8M-8M or CGHS-8XL as well
- Adjustable Wheels for different sized Gate Thickness
- Adjusts from 1-7/8″ to 3″ between the appointed Nylon Rollers
- Zinc Coated Steel and Nylon Wheels
At US Metal Designs, we have the needed components for your next gate project!
99 in stock
Description

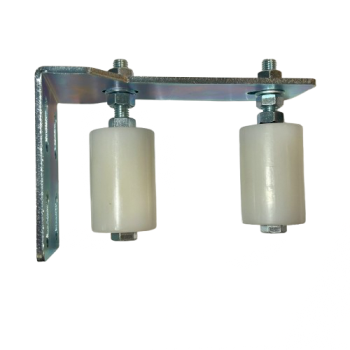

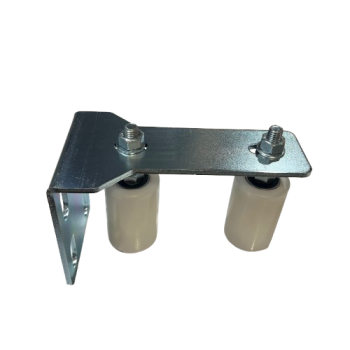

Item#OGGWB-38A Two Wheel Guide Bracket
This Two Wheel Guide Bracket is suitable for Medium or Larger Sized Overhead ; Cantilever or Sliding Gate Systems.
- Two Nylon Guide Wheels
- Strong and safe Gate Wheel Guide
- Works with Carriage Model# CGH8M-8M or CGHS-8XL as well as Overhead Gates
- Adjustable Wheels for different sized Gate Thickness
- Adjusts from 1-7/8″ to 3″ between the appointed Nylon Rollers
- Zinc Coated Steel and Nylon Wheels
Measurements:
Nylon Wheels : Height 1.73″ (44mm) , Dia. 1.6″ (40mm)
Bolt: M12
Bracket: Length 8″, Wheel Guide Width: 2-3/8″
Bracket: Anchor Side Height 4-1/8, Side Height 5″

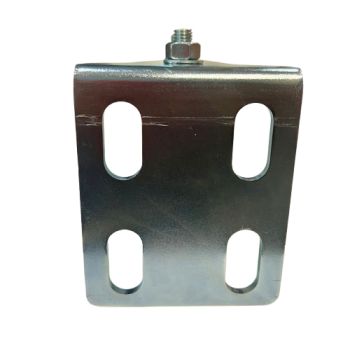

Anchor (Oblong )Holes: 4 Holes Dia. 3/4″ ; Slide Length 1-1/2″
Guide Wheels Measurements: Length 3″; Diameter 2″ and 1/2″ Bolts with Washers Length 5-1/2″
Approx Product Weight 3.55Lbs – this product ships at a higher weight Approx 4.5 lbs.
These guide wheels can be affixed to a single post 4″ or more to be used as an extra gate guide or support.
Additional information
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 12 × 8 × 6 in |
