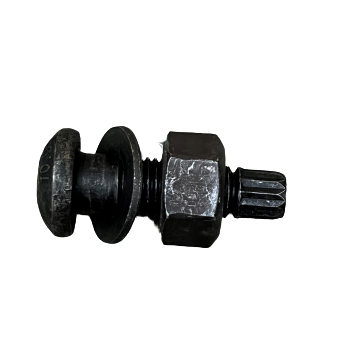

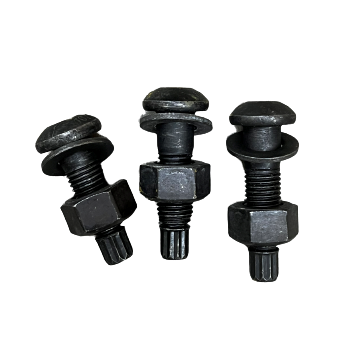

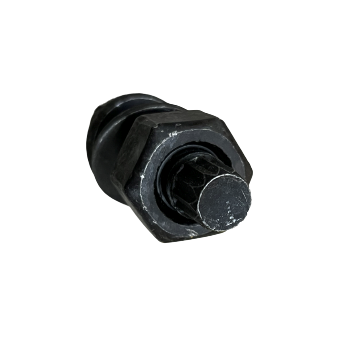

TSB-200.75 Torsional Shear Bolt 2in
$2.25
Description
Torsional Shear Bolt 2in Length with Washers
Item#TSB-200.75
- 2″ Length x 3/4″ Dia
- Black Oxide Finish
- Washers Included
- Meets AWS325/AWS1325 Standards
Torsional Shear Bolt is Perfect for Structural Steel Applications and is Exceedingly Reliable and Provides Exceptional Security.
Product Specification :
- System of Measurements Used- Inch
- Material- Carbon Steel
- Fastener Threat Type- UNC
- Thread Direction- Right Hand
- Tensile Strength- 120,000 psi
- Overall Length- 3.25″
- Fastener Finish- Black Oxide
- Fastener Length- 2.7″
- Thread Type/Style/Length- Coarse;Partially Threaded; 1.5″
- Head Diameter- 1.4″
- Head Height- 0.433″
- Head Style- Twist Off
- Rockwell Hardness- HRC33
- Meet/Exceeds- ASTM
- Grade-
- Thread- 0.75″ 12
- Screw Size- 0.79″
- Nut/Washer Included- Yes
- Nut Dimensions: Height 0.8″, Across Flats 1.3″, Across Apex 1.5″
- Washer Dimensions Thickness 0.2″; OD 1.52″, ID 0.9″
- Nut- Yes, Heavy Hex Nut
- Country of Origin: Globally Sourced
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
