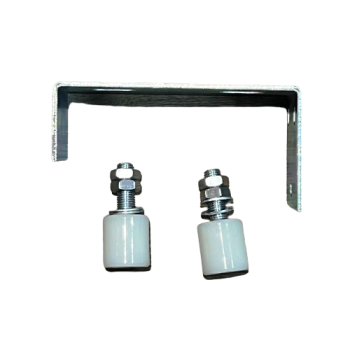

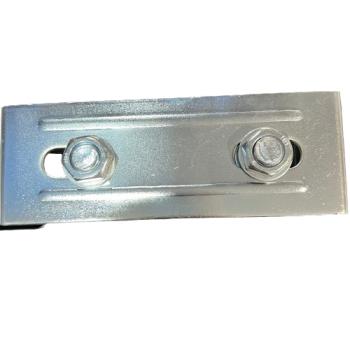

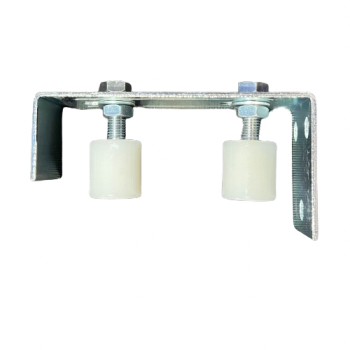

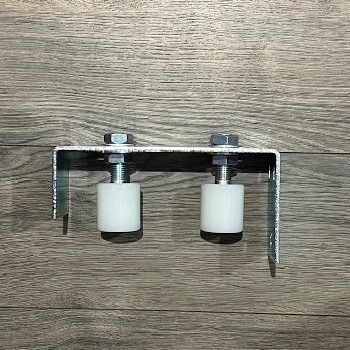

CGH8M-NGB-S Two-Wheel Guide Bracket
$33.16
Item#CGH8M-NGB-S Two-Wheel Guide Bracket
Two-Wheel Guide Bracket For Cantilever Gates
Nylon Wheeled Guide Bracket for Medium or Smaller-Sized Cantilever Gate System with Two Wheels
- Strong and safe Gate Wheel Guide
- Works with Carriage Model# CGH8M-8M or CGHS-8XL
- Adjustable Wheels for different-sized gates
- Adjusts from 1-3/4″ to 3-5/8″ between the appointed Nylon Rollers
- Zinc-coated steel and Nylon Wheels
Shop US Metal Designs today!
3 in stock
Description
Item#CGH8M-NGB-S Two-Wheel Guide Bracket
Two-Wheel Guide Bracket For Cantilever Gates
Nylon Wheeled Guide Bracket for Medium or Smaller-Sized Cantilever Gate System with Two Wheels
- Strong and safe Gate Wheel Guide
- Works with Carriage Model# CGH8M-8M or CGHS-8XL
- Adjustable Wheels for different-sized gates
- Adjusts from 1-3/4″ to 3-5/8″ between the appointed Nylon Rollers
- Zinc-coated steel and Nylon Wheels
Measurements:
Nylon Wheels: Height 1.73″ (44mm), Diameter 1.6″ (40mm)
Bolt: M12
Bracket: Length 7.9″ (200mm), Width 2.8″ (70mm)
Bracket: Anchor Side Height 4″ (101.6mm), Guide Side Height 2.52″ (64mm)
Anchor (Oblong )Holes: 3 holes, diameter 3/8″; 5/8″ H
Approx. Product Weight: 2.6lbs. – This product ships at a higher weight of 3.25lbs.
These guide wheels can be affixed to a single post 2.5″ to 4″ or more to be used as an extra gate guide or support.
Shop US Metal Designs today!
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
